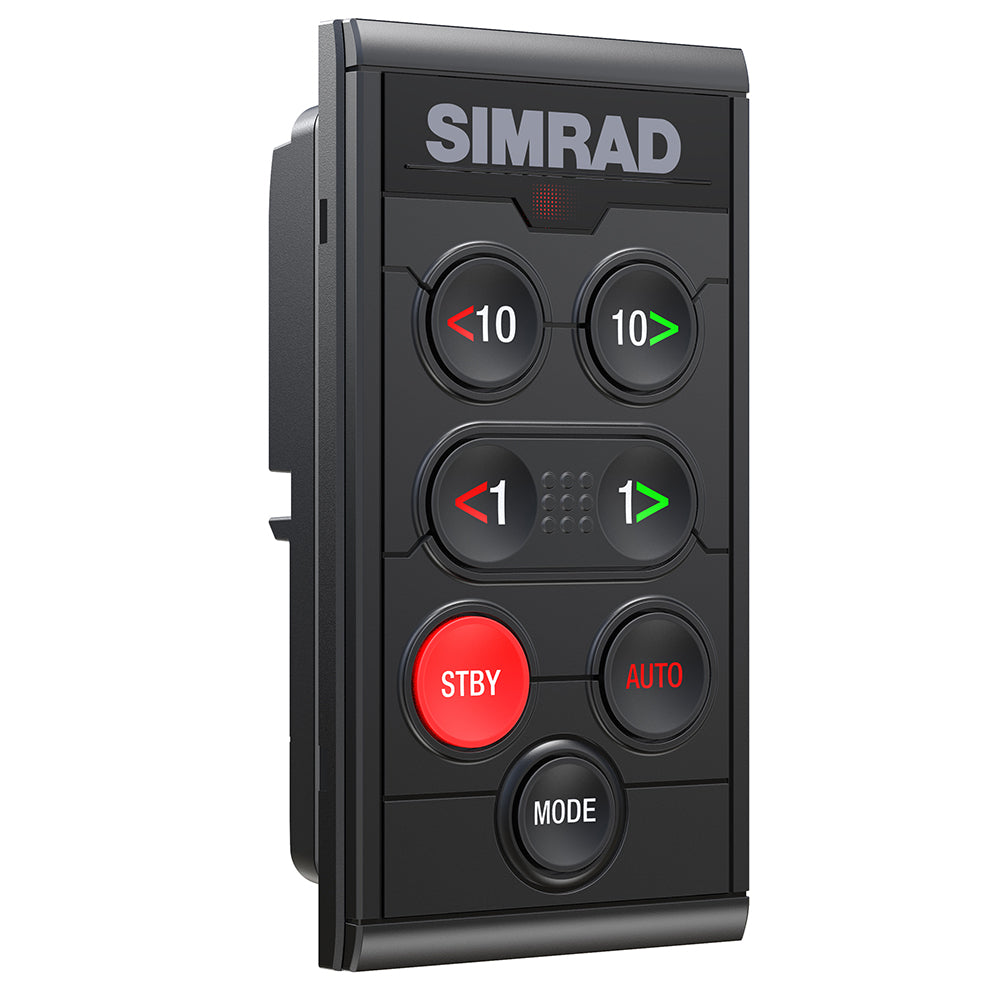

Simrad OP12 Autopilot Controller

OP12 Autopilot Controller

The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.

Features:

• Intuitive operation
• Easy installation

• Combine with an IS42 display for full autopilot control
• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers

• Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
• Low-profile glass helm design

• Low power consumption
• Certified NMEA 2000® connectivity

Specifications:

• Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
• Weight: 0.12kg (0.3lbs)

• Power Consumption: 1.4 Watts
• Network Load: 3 LEN

• Color: Black
• Environmental Protection, Waterproof: Waterproof rating: IPx7

• Environmental Protection, Humidity: Up to 95% RH
• Compass Safe Distance: 300mm (1.0")

• Temperature Operating: -15 to +55°C (5°F to +131°F)
• Temperature Storage: -30 to +70 °C (-22 to +158 °F)
