Simrad Nss9 Evo3s Combo Mfd With C-map Us Enhanced Map

Simrad

$2,599.00
SKU: SIM00015402001

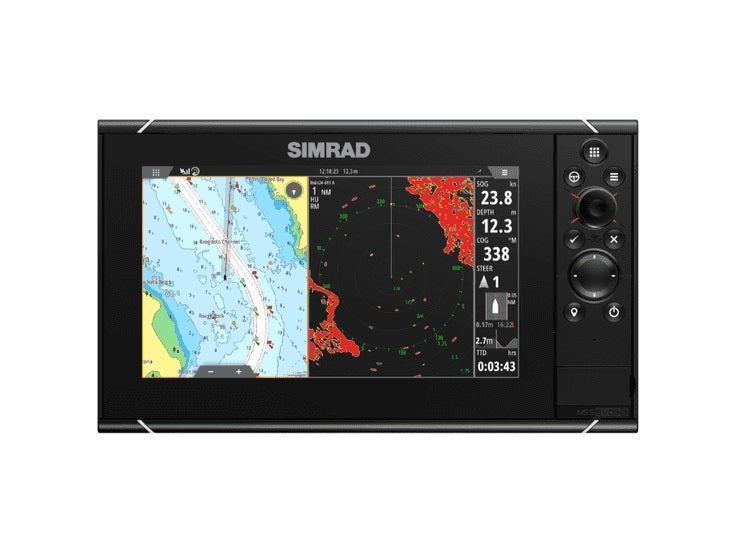

Simrad NSS evo3S 9in Display

Model: 000-15402-001
  • High Resolution, High Bright, SolarMax IPS Displays
  • Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
  • Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
  • Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
  • Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
  • Low profile glass dash styling
  • Built in Wi-Fi connectivity
  • Next Generation Processor
  • SolarMAX IPS Display Technology
  • Multi-touch screen and keypad hybrid control
  • Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications
Physical
Dimensions 287 x 166 x 90 mm (11.30 x 6.55 x 3.50"")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Weight 1.41kg/3.11lb
Environmental
Operating temperature range -15°C to +55°C (5° F to 131° F)
Environment Shock Vibration 100,000 cycles of 20G
Storage temperature range -20°C to +60°C (4°F to 140°F)
Water resitance IPX6 and 7
Power
Supply voltage 10 - 31.2 V DC
Fuse rating 5A
Power consumption (Max) 21W
Display
Display backlight color White
Display resolution 600 x 1280
Display screen brightness 1200 nits
Display size and type High Visibility SolarMax HD® IPS 7"" optically bonded TFT
Display viewing angles 80° top/bottom, 80° left/right
Connectivity
Ethernet 1 x 5 pin yellow connector x 1 Mbit
Bluetooth Internal
NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi connectivity Internal
Sonar
Sonar frequencies 40-250kHz 455-800kHz
Sonar max depth 3000’+ (tested with B175L)
Sonar output power 1kW RMS
Compliance Compliance
GPS
GPS Internal
GPS update rate 10 Hz
GPS channels 34
GPS correction WASS, EGNOS, MSAS, GLONASS
GPS position accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS time to first fix Cold start 50 sec, Satellite Reacquisition 5 sec

What's in the Box:
  • NSS evo3S 9"" Display
  • NSS9 EVO3 SUN COVER
  • NSS9 EVO3 & ZEUS - 9 Mounting Bracket
  • NSS9 EVO3 & ZEUS3 - 9 DASH MOUNT KIT
  • NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS
  • Power Cable
