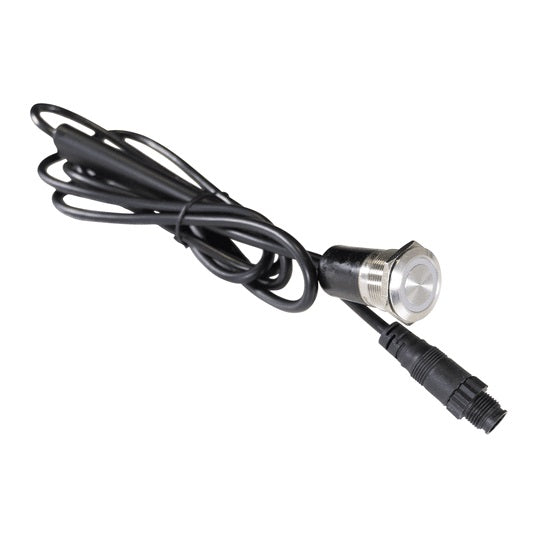

Simrad NMEA2000 Remote MOB Button
Model: 000-15940-001- Easy to install with plug ‘n play installation
- Compatible with NMEA2000® (MOB) Notification standard - PGN 127233
- Compatible with Lowrance®, Simard® and B&G® MFD’s & instrument displays
- Automatically creates a MOB waypoint and provides navigation data to the MOB position
- Dedicated graphical MOB pages on Triton™ 2, H5000 Graphic & Nemesis® displays
- When combined with an H5000 CPU, the CPU will calculate a dead reckoned position of the MOB
- Conforms with World Sailing Offshore Safety Requirements [4.22.2]
This simple to install remote button allows for convenient placement for an emergency Man-Over-Board (MOB) button, which will trigger alerts across a NMEA2000® system and devices. Pressing the button will automatically create a MOB waypoint and provide navigation data to reach the MOB position.
The button is compatible with Lowrance HDS® Live, EliteFS® and HDS® Carbon Chartplotters/Fishfinders. Simrad® NSO™, NSSevo3™ and NSSevo3S™, GO™ and NSX™ Chartplotters and Multifunction Displays, B&G Zeus® 3 and 3S, Vulcan™ chartplotters, and Triton™ 2, H5000 and Nemesis® instrument displays, which also feature a dedicated graphical MOB page. When combined with a B&G H5000 Sailing Processor, the Processor will calculate a dead reckoned position of the MOB position. This safety accessory also conforms with the World Sailing Offshore Safety requirements.
Specifications| Operating temperature | -15°C to +55°C (5°F to 131°F) |
| Waterproof rating | IP67 |
| Power supply voltage | 12 V DC |
| Operating voltage | 9 V DC - 18 V DC |
| Power consumption | 1 LEN, 0.39 W (28 mA at 13.8 V) |
| Reverse polarity protection | Yes |
| NMEA 2000 PGN TX | 127233 |
What's in the Box:
- MOB Button
- N2K-T-RD - Micro-C T-connector
