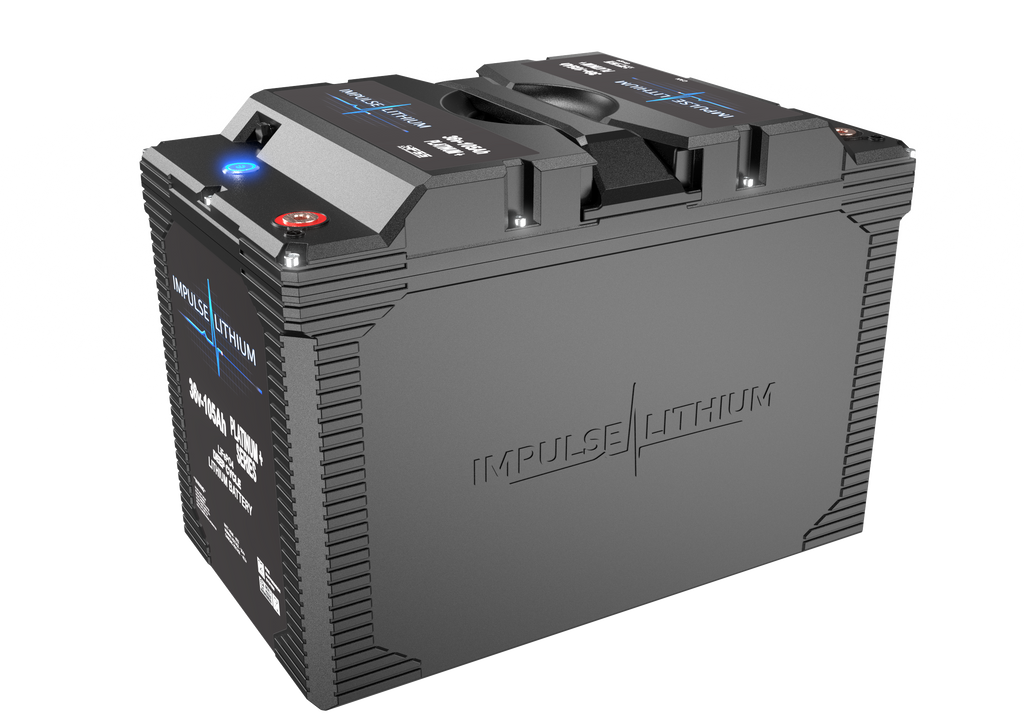

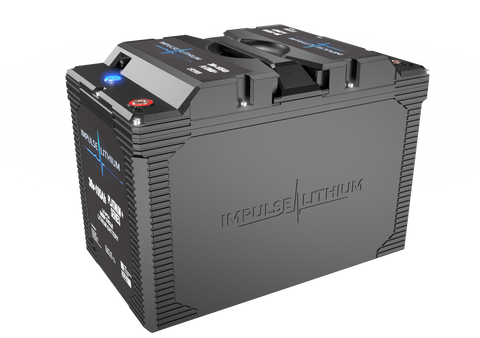

36V-105Ah Platinum+ Lithium Battery System
Maximum Runtime. Integrated Fire Protection. Zero Compromise.
The Impulse Lithium 36V-105Ah Platinum+ is engineered for anglers who demand extended runtime, stable voltage, and advanced safety on the water.
Built with premium prismatic LiFePO4 cells, internal Bluetooth monitoring, and a fully protected 100A BMS, this battery delivers massive usable power for serious 36V trolling motor systems.
Why Choose the Platinum+?
105Ah True Capacity (36V System)
Over 4,000 watt-hours of usable energy.
100A Internal BMS
Over-charge, over-discharge, over-current, short-circuit, temperature, and low-temp protection.
Bluetooth Monitoring (iOS & Android)
Real-time battery status at your fingertips.
Internal Aerosol Fire Suppression (Patent Pending)
Thermal-activated protection system designed to automatically suppress internal fire events.
Marine-Grade IP67 Rated Case
Water and vibration resistant for harsh marine environments.

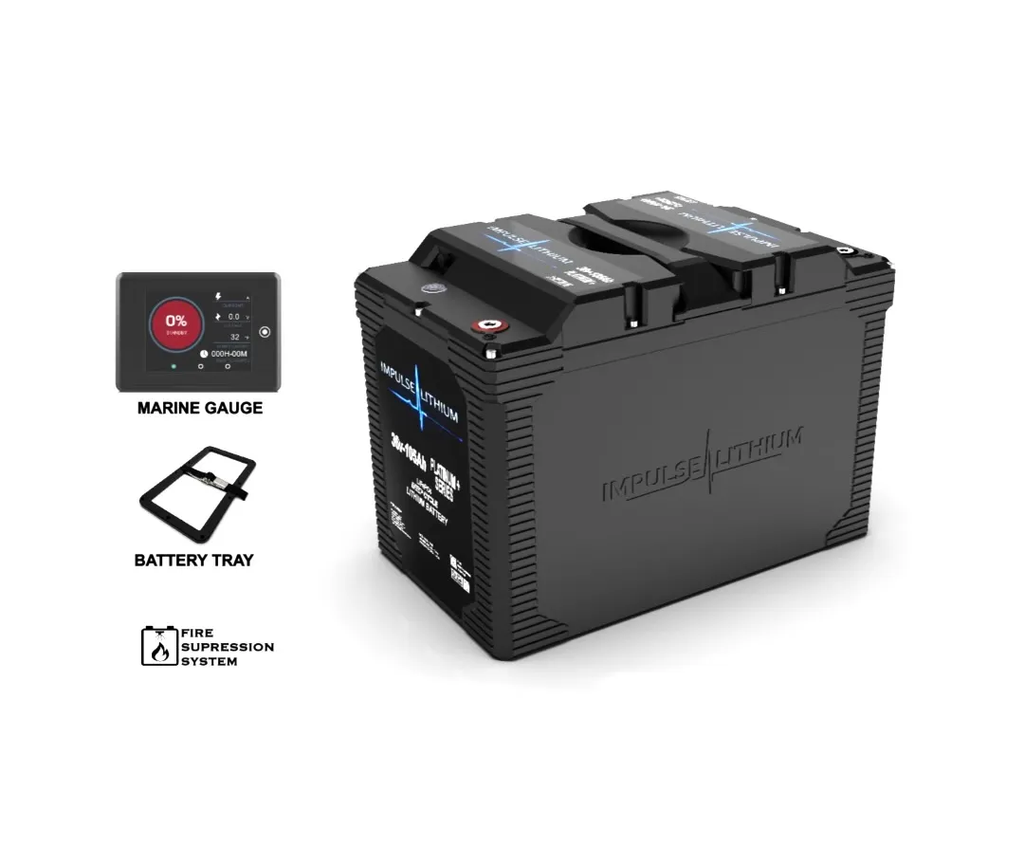

Complete Installation Package Included
• Battery Monitoring Gauge
• Heavy-Duty Hold-Down Tray
• Retention Strap
Backed by a 10-Year Warranty
Technical Specifications
Nominal Voltage: 36V
Nominal Capacity: 105Ah
Energy: 4,032 Wh
Battery Management System: 12S 100A
Max Continuous Discharge: 100A
Standard Charge Current: 20A
Fast Charge Current: 50A
Charge Voltage: 43.2V ±0.6V
Cut-Off Voltage: 30V
Cycle Life:
• 3,000 cycles @ 100% DOD
• 6,000 cycles @ 80% DOD
Self-Discharge: <3% per month
Charge Efficiency: 100% @ 0.2C
Discharge Efficiency: 98–100% @ 1C
Temperature Ratings
Charge Temperature: 32°F to 131°F
Discharge Temperature: -4°F to 140°F
Storage Temperature: 23°F to 113°F
Physical Dimensions
Length: 14.43 inches
Width: 8.52 inches
Height: 10.28 inches
Weight: 66 lbs
Terminal Type: M8
IP Rating: IP67
Cell Type: Prismatic LiFePO4
Built for Tournament-Level Demands
When conditions get rough and the day runs long, the 36V-105Ah Platinum+ delivers stable, consistent power without voltage sag — so your trolling motor performs at full strength from launch to weigh-in.
If you refuse compromise, this is your battery.

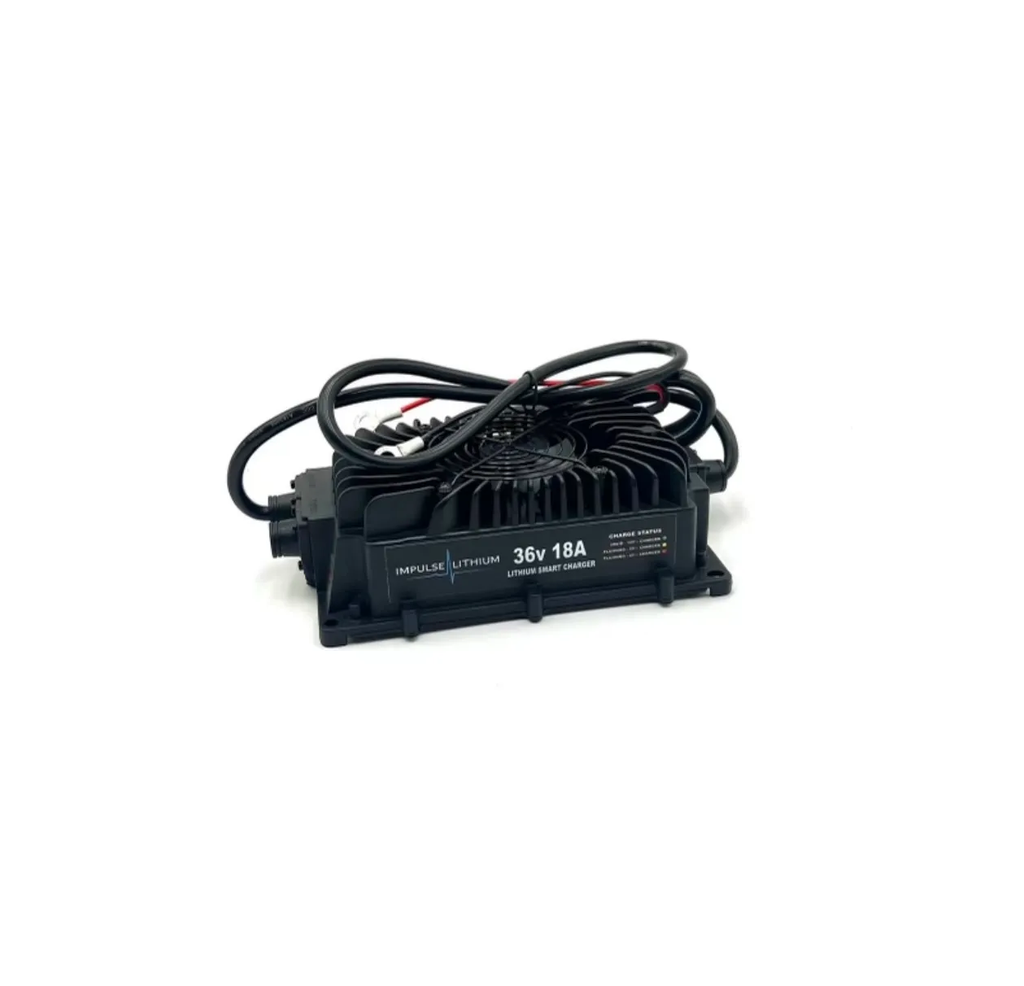

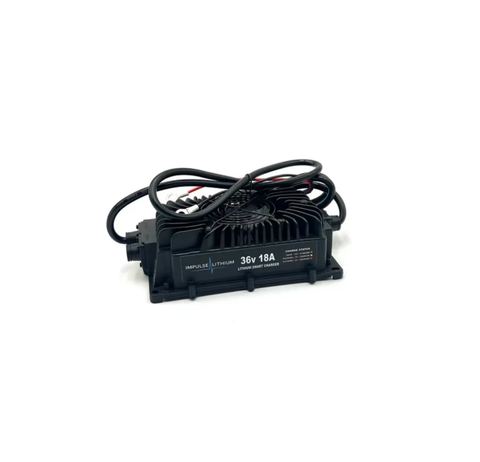

Impulse Lithiums 36v-18a Charger Included
