Garmin

Garmin Lvs34 Transducer Replacement For Livescope Plus Transom/trolling Motor Mount

SKU: 010-02706-10
  • Sale
  • Regular price $1,199.99

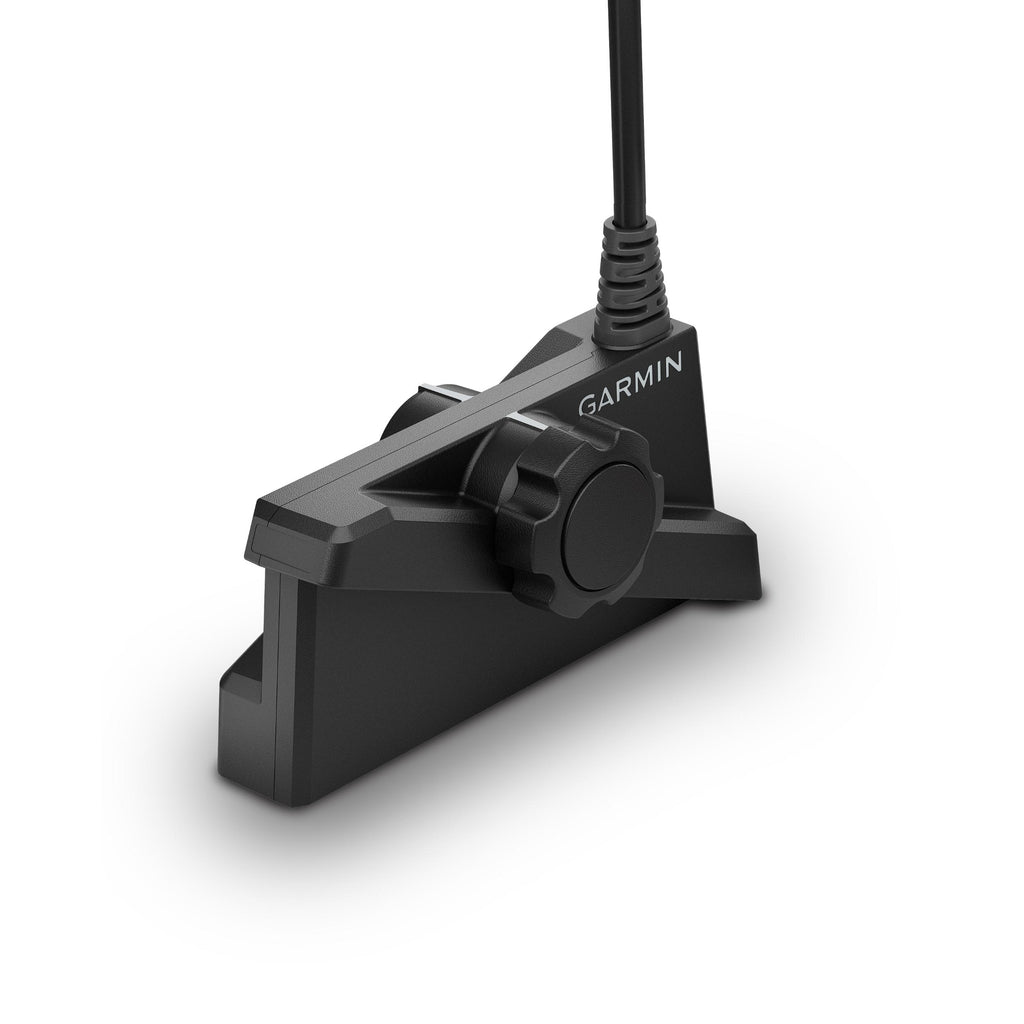

Garmin LVS34 Transducer for Panoptix Livescop Plus

Model: 010-02706-10
  • See images clearly with improved screen clarity, transducer sensitivity and target separation.
  • Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
  • Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
  • Get maximum contrast and clarity in your images with vivid color palettes.
  • Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible

CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.

Specifications
General
DIMENSION 6.4" x 3.1" x 1.9" (16.2 x 3.1 x 4.8 cm)
WEIGHT 2.25 lbs (1.02 kg)
WATERPROOF WATERPROOF
WATERPROOF Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY 530 - 1,100 kHz
MAXDEPTH Down and Forward: 200’ (61.0 m)
Connections
CONNECTIONS GARMIN MARINE NETWORK PORTS 1 (small connector)
Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS-SAFE DISTANCE 4"" (0.1 m)
Additional
Minimum depth 3' (0.91 m)
Sonar type Live
Beamwidth 20° x 135°
Transducer cable length 20 ft
Transducer number of pins 21

What's in the Box:
  • Panoptix LVS34 transducer
  • Perspective mount
  • Trolling motor barrel mount
  • Trolling motor barrel mount
  • Documentation
