Garmin Gwind Transducer

Garmin

$599.99
SKU: GAR0100122700

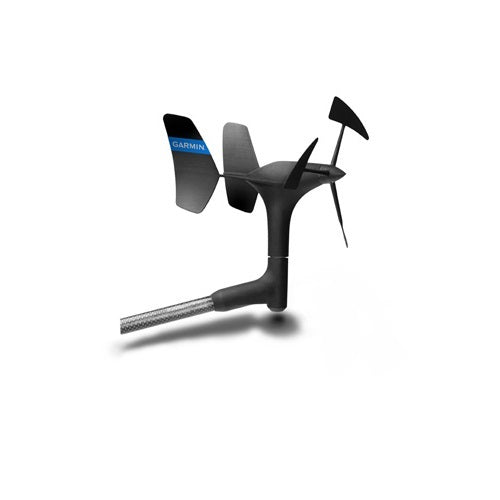

Garmin gWind™ Wired Transducer

Model: 010-01227-00
  • Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air
  • Twin-fin design gives a more stable True Wind Angle (TWA)
  • Optic reading technique for superior performance at low wind speeds with excellent linearity
  • GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa
  • Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB

The gWind transducer features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

The included GND 10 black box bridge enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND 10 enables Garmin chartplotter owners to use Nexus sail equipment and vice versa. Available in 2 bundles (sold separately).

Specifications
Unit Dimension, WxH 13.6"" x 24"" (345 mm x 610 mm)
Weight 260 g
Cable Length 25 m
Waterproof Yes (IPX6 )
Temp Range From 5°F to 158°F (-15°C to 70°C)
Storage Temperature From -4°F to 176°F (-20°C to 80°C)
Voltage Range 9-16V
Power Usage 0.33W
Typical Current Draw at 12 VDC 28 mA
Accuracy Angle Better than ±1.5°
Speed Better than ±3%
Wind Speed Range 0. 8-90 knots (0. 4-50 m/s)
Wireless Connectivity No

What's in the Box:
  • gWind transducer
  • GND™ 10
  • NMEA 2000® drop cable (2 m)
  • NMEA 2000 T-connector
  • Mast cable with female connector (25 m)
  • Nexus female field installable connector
  • Mast bracket
  • Mounting hardware
  • Documentation
