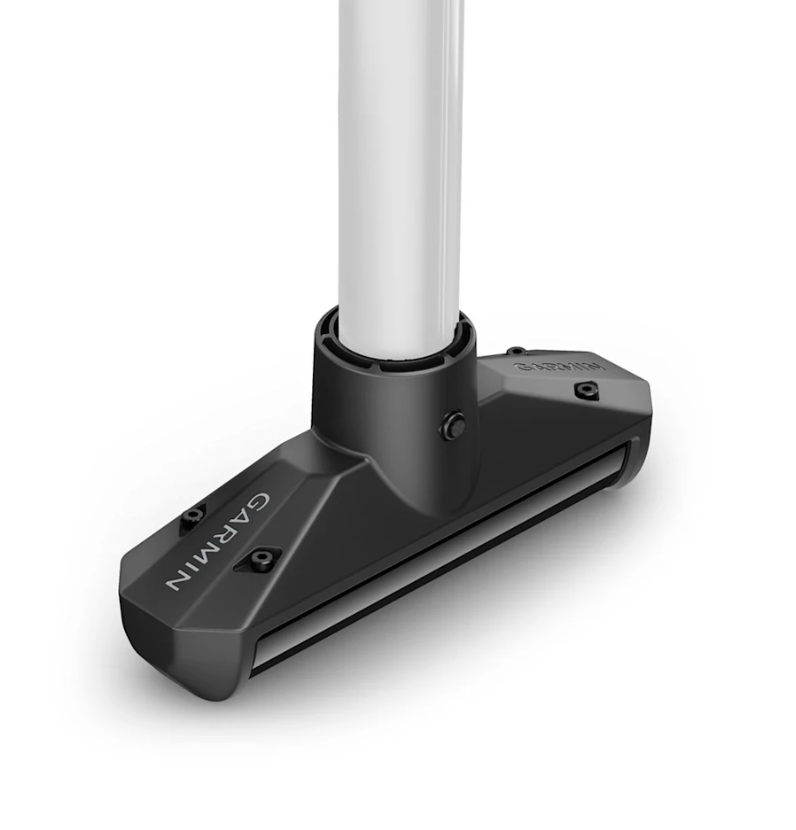

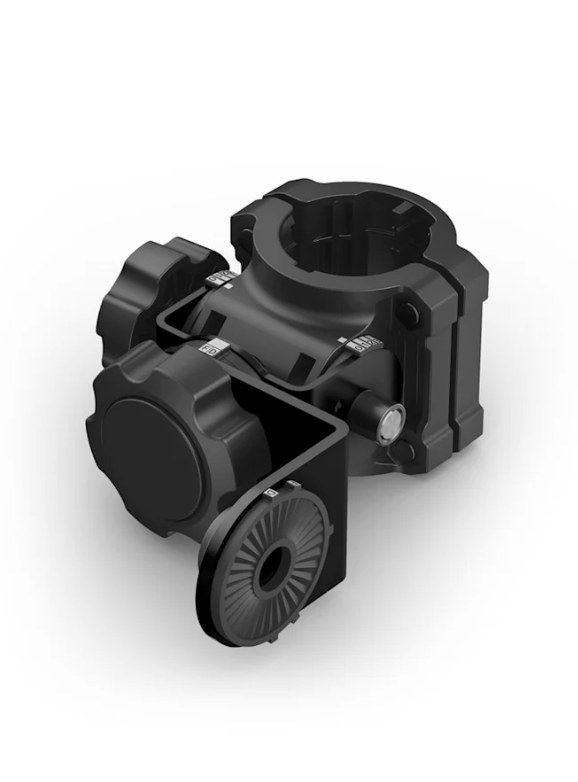

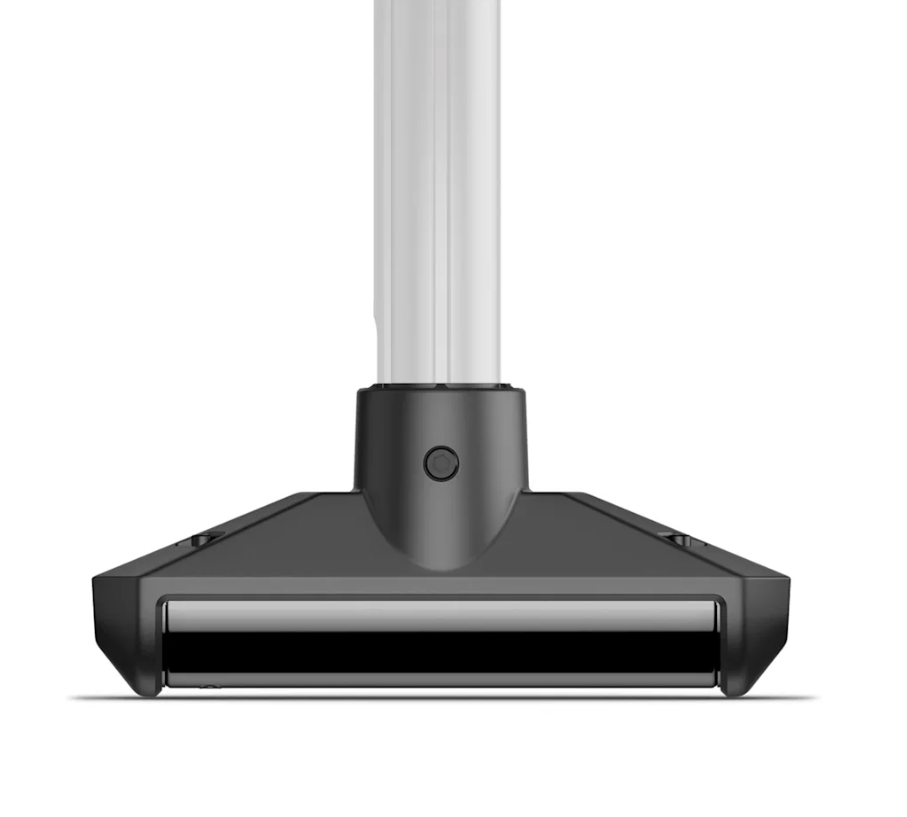

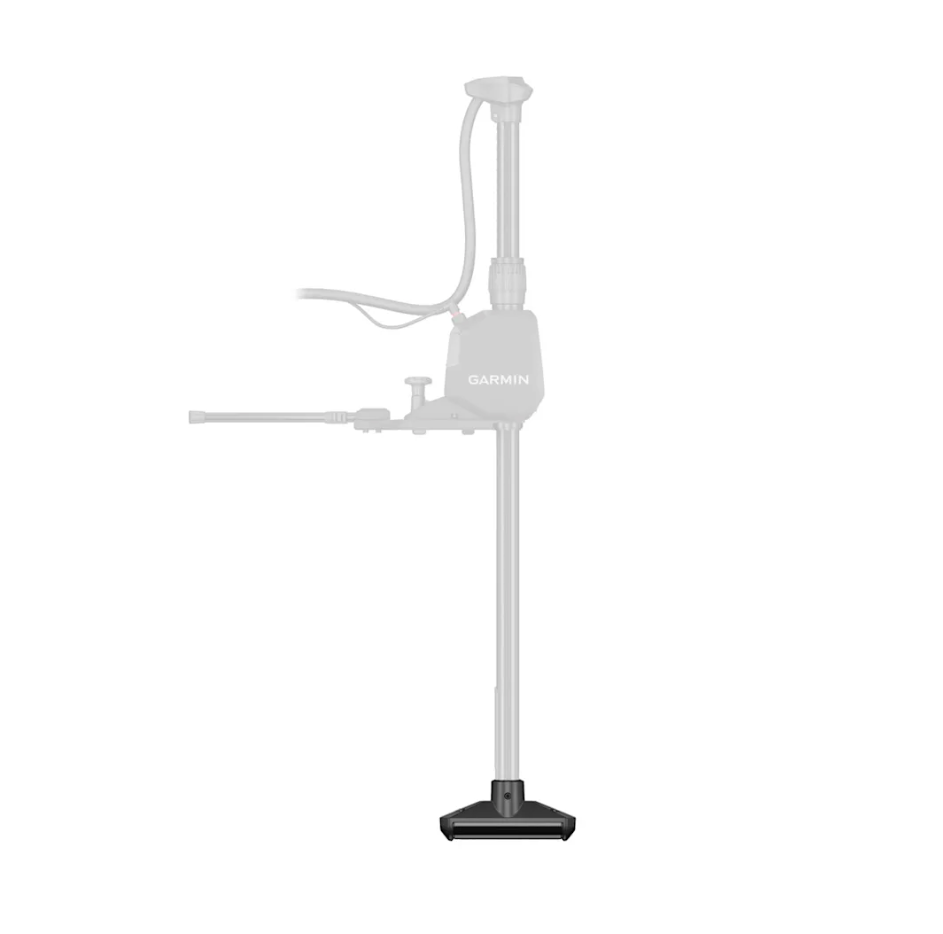

See the underwater world like never before with the GT360UHD transducer. Mount it on SpyTM pole (sold separately) to capture
OneVüTM sonar, 360 degrees of bird’s-eye imagery around your boat in 2D and 3D views — then fish that area without having to
constantly rescan. GT360UHD seamlessly integrates with GPS through True Motion technology, so your sonar scans stay true to

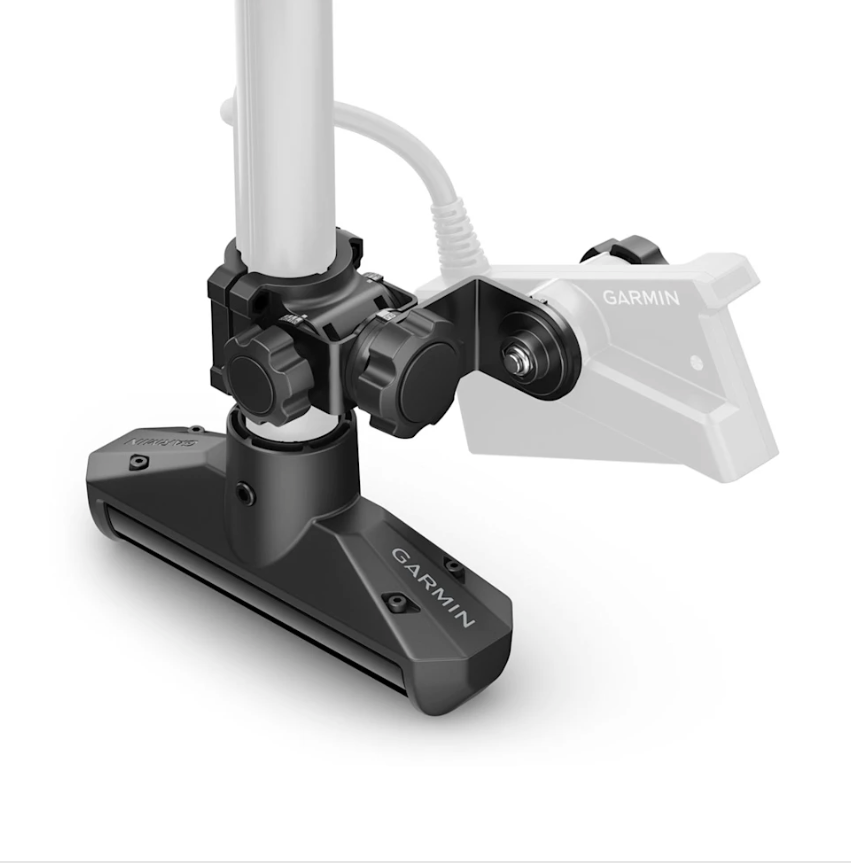

location as your boat moves through the water. Combine with your LiveScopeTM transducer to overlay your live sonar onto the detailed
imagery for an all-new 3D view.
PHYSICAL SPECIFICATIONS:
- TRANSDUCER FREQUENCY: OneVüTM/SideVüTM 455 kHz, 800 kHz, 1,070 kHz
- TRANSDUCER POWER: 500 watts
- TRANSDUCER BEAMWIDTH: OneVü/SideVü 0.52 x 52 at 1,000 kHz, 0.64 x 35 at 800 kHz, 1.1 x 52 at 455 kHz
-TRANSDUCER MAXIMUM DEPTH OneVü/SideVü (455 kHz): 500’ Max range, 100’ Max Depth OneVü/SideVü (1 MHz): 200’ Max range, 40’ Max Depth
- TRANSDUCER CABLE LENGTH 20.3’: (6.2 meters)
- TRANSDUCER DEPTH/SPEED/TEMPERATURE: Depth and temperature
- TRANSDUCER NUMBER OF PINS: 12
- ONEVÜ SOURCE: Yes
- DIMENSIONS (WITH MOUNT; LXWXH): 8.5” x 2.3” x 3.8” (216 x 58 x 97 mm)
