Garmin Gps24xd Hvs Nmea 0183 Gps Sensor With Heading Sensor

Garmin

$299.99
SKU: GAR0100231600

Garmin GPS 24xd HVS NMEA 0183 GPS Sensor with Heading Sensor

Model: 010-02316-00
  • Navigate in more locations with expanded GNSS support.
  • Get high-sensitivity tracking with fast GPS update rate.
  • Accurately pinpoint your heading — regardless of speed.
  • It’s water-resistant (IPX7) to withstand the elements.
  • Install it easily with multiple mounting options.
  • The antenna is compatible with NMEA 0183 devices.

The GPS 24xd HVS position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.

Multi-band GNSS provides location accuracy to within 1 meter to compatible marine multifunction displays, instrument displays and autopilots.

The magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds.

The magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds.

GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo1, GLONASS and BeiDou1) to more accurately track in challenging conditions than GPS alone.

Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

Installation is easy with under-deck, pole and surface-mount options.

Specifications
Dimensions (D x H) 3 19/32"" x 1 15/16"" (91.6 mm x 49.5 mm)
Weight 7.1 oz (201 g)
Cable length 19 ft 8"" (6 m)
Temperature range -22° to 176° F (-30° to 80° C)
Case material Fully gasketed, high-impact plastic alloy; waterproof to IPX7
Compass-safe distance 5.9"" (150 mm)
Power source input 8-33 Vdc, unregulated
Input current 150 mA at 12 Vdc
Position accuracy, typical marine use < 50 cm, CEP 50%; < 1.0 meter, 88%

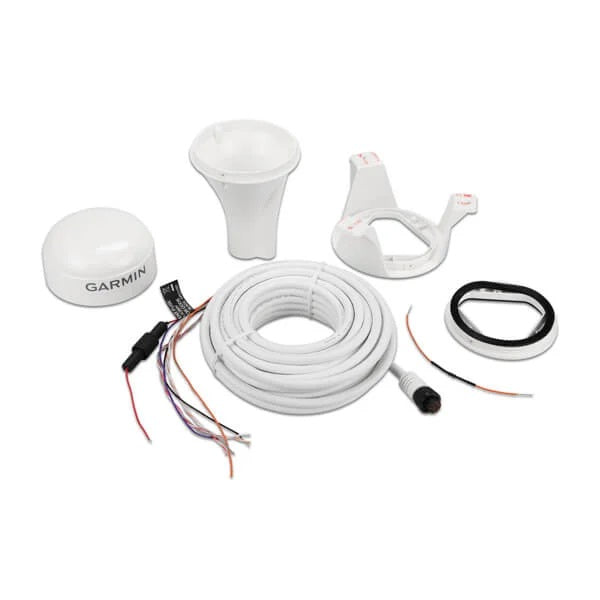

What's in the Box:
  • GPS 24xd HVS
  • Pole mount
  • Surface mount
  • Under deck mount
  • Power/data cable
  • Update rate select cable
  • Documentation
